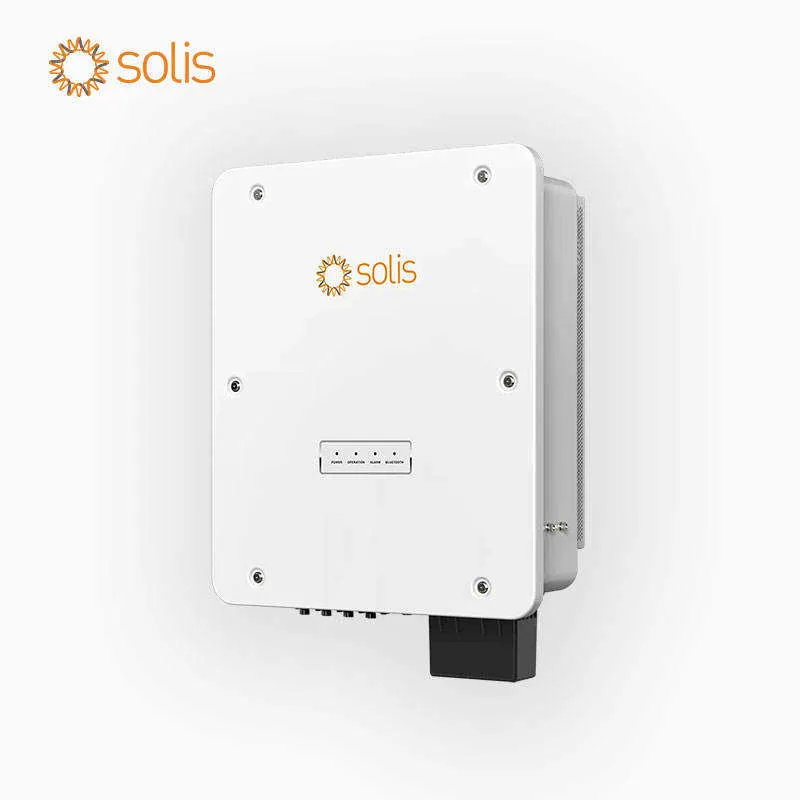

Introduction to Innovation
The Solis S6-GC3P(23-36)K-LV-ND Inverter Solar System stands at the forefront of technology in both residential and commercial uses during a time when sustaining our environment through energy efficiency is becoming more important than ever before. This system was engineered to be as environmentally responsible as possible, yet to produce the most energy from the environment. By combining advanced technology with an emphasis on the end-user of the product, the S6-GC3P series is raising the bar for solar systems across the board. Whether you are a homeowner looking to lower your electric bill or a manager of a commercial enterprise looking for energy independence, the S6-GC3P series has broadened the horizons of what solar technology will accomplish.
Why Choose the S6-GC3P Series?
1. Unmatched Efficiency & Performance
High-Yield Solar Conversion: S6-GC3P High Yield Solar Energy Generation System is a high-efficiency system that uses proprietary technology to generate energy from sunlight. It generates energy at the highest possible level of efficiency within the solar industry and maintains this level of energy generation in low light situations.
Smart Energy Management: Smart Energy Monitoring System will monitor energy usage through an artificial intelligence (AI) driven system. AI will provide real-time monitoring of energy use and compare that to what is actually being used so as to only distribute energy when it's needed. This system will help decrease wasted energy and increase the amount of money saved.
This thing is built tough so it can handle all kinds of crazy weather, from super hot to freezing cold, plus strong winds and tons of snow. Basically, it's made to last, no matter where you are.
2. Modular Design for Scalability
3. Seamless Integration & User Experience
Simple to Install 'Plug and Play' Installation: Our pre-configured hardware simplifies installation significantly by reducing time and labor cost. Comprehensive Control Via Mobile App: Users will have access to view production and consumption of energy and health of their solar power systems in real-time using a convenient mobile app, allowing them to maximize their energy use from any location.
Key Advantages Over Competitors
|
|
|
|
|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical Excellence in Detail
The S6-GC3P series is Designed with several proprietary features:
Monocrystalline Silicon Panels
These have a higher efficiency and a higher purity than traditional Polycrystalline.
Smart Inverters
Our inverters feature integrated maximum power points (MPPTs) that generate maximum photovoltaic (PV) energy under all weather conditions, including low-light and peak sun.
Strong Mounting Systems
Our mounting systems can be adjusted for angle and are capable of withstanding high winds.
Why Partner with Mutian?
Residential Use
Case Study: A California family reduced their electricity bills by 70% using the S6-GC3P system, paired with battery storage for nighttime energy needs.
Commercial Use
Agricultural Use
Case Study: A solar-powered irrigation system in India supported year-round farming for 50+ acres, eliminating reliance on diesel generators.
Conclusion
Call to Action
FAQ
The Solis S6-GC3P(23-36)K-LV-ND Inverter? It's not just about getting energy, it's about giving power to folks, being kinder to the planet, and making sure we don't have to rely on others for our energy needs. Let's get together and make a future which can keep going, starting with each solar panel we put up.
Hot Tags: solis s6-gc3p(23-36)k-lv-nd inverter, China solis s6-gc3p(23-36)k-lv-nd inverter manufacturers, suppliers, factory, inverter for solar power system, modified sine wave inverter, power inverter, pure sine wave inverter, solar inverter
Technical parameters
| DATASHEET | ||||
| Models | 23K03 | 25K04 | 30K04 | 36K04 |
| Input DC | ||||
| Max. input voltage | 1100 V | |||
| Rated voltage | 400 V | |||
| Start-up voltage | 180 V | |||
| MPPT voltage range | 180 - 1000 V | |||
| Max. input current | 42 A / 42 A / 42 A | 4 × 42 A | ||
| Max. short circuit current | 52.5 A / 52.5 A /52.5 A | 4 × 52.5 A | ||
| MPPT number / Max. input strings number | 3 / 6 | 4 / 8 | ||
| Output AC | ||||
| Rated output power | 23 kW | 25 kW | 30 kW | 36 kW |
| Max. apparent output power | 23 kVA | 25 kVA | 30 kVA | 36 kVA |
| Max. output power | 23 kW | 25 kW | 30 kW | 36 kW |
| Rated grid voltage | 3/PE, 220 V / 230 V | |||
| Rated grid frequency | 50 Hz / 60 Hz | |||
| Rated grid output current | 60.4 A / 57.7 A | 65.6 A / 62.8 A | 78.7 A / 75.3 A | 94.5 A / 90.4 A |
| Max. output current | 60.4 A / 57.7 A | 65.6 A / 62.8 A | 78.7 A / 75.3 A | 94.5 A / 90.4 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) | |||
| THDi | < 3% | |||
| Efficiency | ||||
| Max. efficiency | 97.8% | |||
| EU efficiency | 97.3% | |||
| Protection | ||||
| DC reverse-polarity protection | Yes | |||
| Short circuit protection | Yes | |||
| Output over current protection | Yes | |||
| Surge protection | DC Type II / AC Type II | |||
| Grid monitoring | Yes | |||
| Anti-islanding protection | Yes | |||
| Temperature protection | Yes | |||
| Strings monitoring | Yes | |||
| I/V Curve scanning | Yes | |||
| Multi peak scan | Yes | |||
| Integrated AFCI 2.0 | Optional | |||
| Integrated PID recovery | Optional | |||
| Integrated DC switch | Yes | |||
| General Data | ||||
| Dimensions (W × H × D) | 508 × 612 × 288 mm | |||
| Weight | 32.6 kg | 35.9 kg | 36.2 kg | |
| Topology | Transformerless | |||
| Self-consumption (night) | < 1 W | |||
| Operating ambient temperature range | -25 ~ +60°C | |||
| Relative humidity | 0 - 100% | |||
| Ingress protection | IP66 | |||
| Noise emission (typical) | ≤ 55 dB(A) | |||
| Cooling concept | Intelligent fan-cooling | |||
| Max. operation altitude | 4000 m | |||
| Grid connection standard | G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530 | |||
| Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 | |||
| Features | ||||
| DC connection | MC4 connector | |||
| AC connection | OT terminal | |||
| Display | LED indicator & Bluetooth + APP | |||
| Communication | RS485, Optional: Wi-Fi, GPRS | |||
