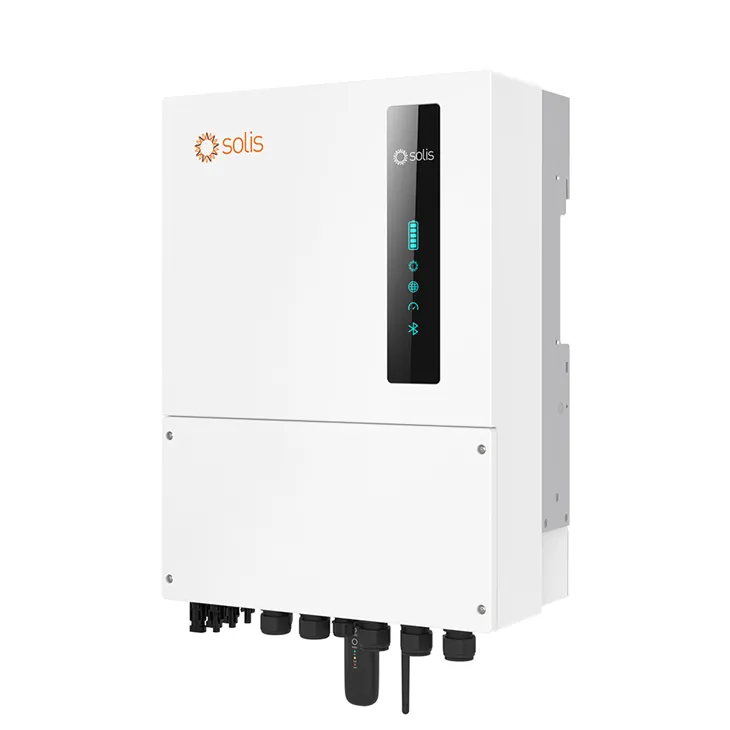

Solis S6-EH1P8K-L-PRO Inverter

Solis S6-EH1P8K-L-PRO Inverter

Single Phase Low Voltage Energy Storage Inverter
Send Inquiry
Description
Technical Parameters

Products Description-Solis S6-EH1P8K-L-PRO Inverter



H2ef44cfc6d6246f88142906e78d097fc6

Solis S6-EH1P8K-L-PRO Inverter with many excellent features, first, Up to 32A of MPPT current input to support 182mm/210mm solar panels; Supports 6 customized charge and discharge time set with defined charging source, more friendly for battery. And can support multiple parallel machine to form single-phase or three-phase system, the maximum power of 48kW. With UPS level switching time (< 4 ms), 190A charge-discharge current, provides higher energy throughput density. Intelligent and reliable ,which is the preferred product of residential PV energy storage and small commercial PV energy storage.

Products Features:



• Generator connectivity with multiple input methods and automatic generator On/Off control.

• Automatic UPS switching.

• 10 second 200% surge power backup overload capability.

• Supports 1ph and 3ph flexible connection with max 48kW in parallel.

• Up to 190A max charge/discharge current.

• 6 customisable charge/discharge time settings.

• Compatible with lead-acid and lithium batteries, with multiple battery protection features.

• Supports peak shaving control in both "self-use" and "generator" mode.



Why Off Grid Solar Power is Important


1.Environmental Responsibility
Solar power systems do not emit anything when in-use, leading to a significant reduction in carbon footprints compared to traditional power systems. Choosing to use solar power systems means you are directly helping to battle climate change, while helping to protect the surrounding natural environment.
2.Financial Independence
Solar power systems help avoid monthly electric bills and market fluctuations back into your wallet. Over a longer period, including installation, solar becomes a self-sustaining asset that pays for itself through reduced electricity costs.
3.Independence from Uncertainty
Natural disasters and power grid failures can disrupt hundreds of homes and businesses. But during these crises, off-the-grid systems produce reliable electricity as needed. This provides comfort, reassurance and continuity for families and residents.
4.Quiet operation without extensive maintenance
Solar power systems do not use fossil fuels for operation, so they operate quietly and without the pollution of the carbons that traditional generators release into the environment. With limited moving parts and substantial warranties on components, regular maintenance is next to zero. Solar panels are ready when needed - with little effort to maintain.



The Mechanisms of Renewable Energy



Our systems employ a combination of state-of-the-art technologies at the core including:
High-Efficiency Solar Panels: Panels modified to absorb as much sunlight as possible even in low-light cooking, ensure you always have energy output that you can depend upon.
Smart Battery Systems: Lithium-ion batteries that are capable of deep-cycle discharge are very efficient at storing excess energy and ready to power low-wattage appliances at night or on cloudy days.
Pure Sine Wave Inverters: Supply clean, stable power to sensitive electric appliances and appliances free from flicker or interference typically experienced in lesser systems.



Join the Movement


The worldwide transition to off grid energy is accelerating rapidly around the world utilizing innovative technology and a mutual dream of a greener lifestyle. Our Off Grid Solar Kits are far more than just products. Each kit is an empowering combination of products and processes that present users with options and ways to responsibly take control of their energy and consumption while still protecting our planet.
Imagine a world that has both sustainability and autonomy, then take the next step and transition to solar to experience freedom of unlimited, clean energy.
Sustainably Power Your Independence.

Solis S6-EH1P8K-L-PRO Inverter

Hot Tags: solis s6-eh1p8k-l-pro inverter, China solis s6-eh1p8k-l-pro inverter manufacturers, suppliers, factory, grid tied inverter, inverter for solar power system, modified sine wave inverter, power inverter, pure sine wave inverter, solar inverter



Technical Parameters



Solis S6-EH1P8K-L-PRO Inverter

DATASHEET S6-EH1P8K-L-PR
Models 8K
Input DC (PV side)
Recommended max. PV array size 16 kW
Max. usable PV input power 12.8 kW
Max. input voltage 600 V
Rated voltage 330 V
Start-up voltage 90 V
MPPT voltage range 90 - 520 V
Max. input current 32 A / 20 A
Max. short circuit current 36 A / 30 A
MPPT number / Max. input strings number 2 / 3
Battery
Battery type Li-ion / Lead-acid
Battery voltage range 40 - 60 V
Max. charge / discharge power 8 kW
Max. charge / discharge current 190 A
Communication CAN / RS485
Output AC (Grid side)
Rated output power 8 kW
Max. apparent output power 8.8 kVA
Operation phase 1/N/PE
Rated grid voltage 220 V / 230 V
Rated grid frequency 50 Hz / 60 Hz
Rated grid output current 36.4 A / 34.8 A
Max. output current 40 A
Power factor > 0.99 (0.8 leading - 0.8 lagging)
THDi < 2%
Input AC (Grid side)
Input voltage rang 187 - 253 V
Max. input current 50 A
Frequency range 45 - 55 Hz / 55 - 65 Hz
Output AC (Back-up)
Rated output power 8 kW
Max. apparent output power 2 times of rated power, 10 s
Back-up switch time < 4 ms
Rated output voltage 1/N/PE, 220 V / 230 V
Rated frequency 50 Hz / 60 Hz
Rated output current 36.4 A / 34.8 A
Max. output current 40 A
Max. AC passthrough current 50 A
THDv (@linear load) < 2%
Efficiency
Max. efficiency > 96.9%
EU efficiency > 96.5%
Protection
DC reverse-polarity protection Yes
Ground fault monitoring Yes
Integrated AFCI Yes (1)
Protection class / Over voltage category I / II (PV and BAT), III (MAINS and BACKUP and GEN)
General Data
Dimensions (W × H × D) 406 × 560 × 215 mm
Weight 26 kg
Topology High frequency isolation (for battery)
Operating ambient temperature range -40 ~ +60°C
Ingress protection IP66
Cooling concept Intelligent fan-cooling
Max. operation altitude 4000 m
Grid connection standard NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Safety / EMC standard IEC/EN 62109-1/-2, EN 61000-6-2/-3
Features
DC connection MC4 plug (PV port) / Terminal Block (BAT port)
AC connection Terminal Block
Display LED indicator & Bluetooth + APP
Communication RS485, CAN, Optional: Wi-Fi, GPRS, LAN
