Hebei Mutian Solar Energy Technology Development Co., Ltd. is one of the most reliable manufacturers and suppliers of 5.12kwh home energy storage solution in China, also supports customized service. Welcome to buy advanced 5.12kwh home energy storage solution in stock from our factory.

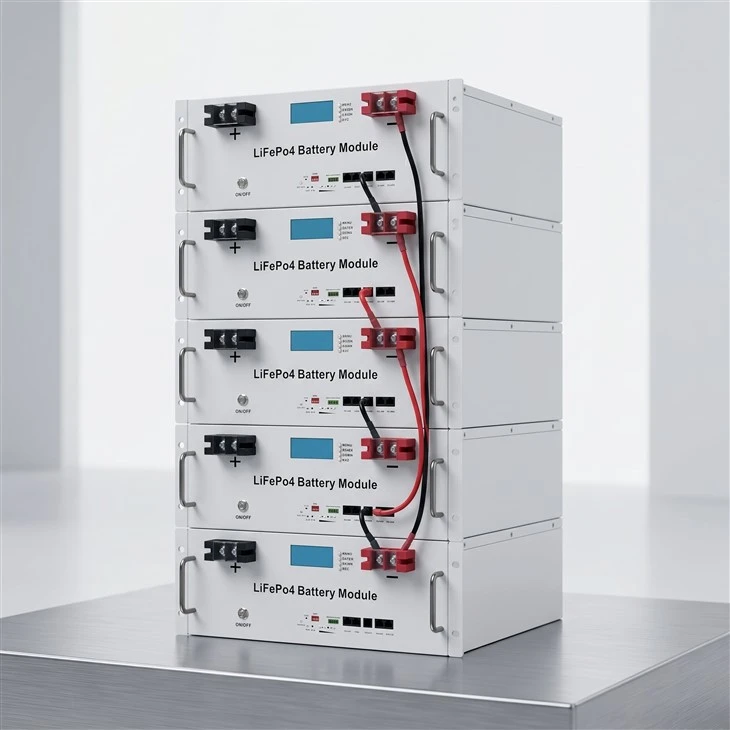

Product Overview – Premium Tower-Type Energy Storage
The 5.12kWh Home Energy Storage Solution is a high-performance residential and commercial energy storage solution engineered for safety, longevity, and intelligent energy management. Delivering 5.12kWh of rated energy with a robust 16S120A Battery Management System (BMS) , this tower-type battery pack is purpose-built for solar/wind energy storage systems, UPS backup power, communication equipment, medical devices, and fire and security systems.
At a compact dimension of 480×430×180mm, the tower-style battery pack is easily accommodated within the current power infrastructure. The system is made up of prismatic LiFePO₄ batteries referred to as LFP3.2V100AH offering thermal stability, safety, and long life. It is estimated to have a cycle life of 8,000 cycles which is considerably higher than that of standard lead-acid batteries which usually attain 300-500 cycles.
It can be applied in various applications such as that of solar panel installers who need effective energy storage vehicle owners seeking independence in terms of energy consumption as well as facility managers who need constant backup to continue with the daily operations.
Detailed Technical Specifications-5.12kWh Home Energy Storage Solution
| Parameter | Specification |
|---|---|
| Model | 51.2V100AH (Tower Type / 5U Chassis) |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Cell Type | LFP3.2V100AH (16S1P configuration) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Rated Energy | 5,120Wh (5.12kWh) |
| Continuous Charge Current | 0–120A |
| Continuous Discharge Current | 0–120A |
| Charge Termination Voltage | 58.4V |
| Discharge Termination Voltage | 44.8V–46.5V |
| BMS | 16S120A intelligent protection board |
| Communication Interfaces | RS232, RS485, CAN |
| Cycle Life | 8,000 cycles |
| Operating Temperature | -20°C ~ 60°C |
| Operating Humidity | ≤95% (non-condensing) |
| Maximum Altitude | ≤4,000m |
| Protection Functions | Over-voltage, low-voltage, overload, short circuit, over-temperature |
| Product Dimensions | 480 × 430 × 180mm |
| Package Dimensions | 500 × 455 × 258mm / 590 × 530 × 430mm |
| Product Weight | 43.5kg |
| Gross Weight | 55.5kg |
| Built-in Features | Intelligent Bluetooth & WiFi APP module |
Key Features & Competitive Advantages
Advanced LiFePO₄ Chemistry – Unmatched Safety & Stability
The body of these batteries is strong and the cells hold their shape against ongoing ambient loads, making them ideal as a storage solution in private households. The phosphate-based chemistry also means that there are no toxic or scarce metals used in the construction of the battery's electrodes.
Intelligent 16S120A BMS – Comprehensive Protection
At the heart of this battery pack lies a sophisticated 16S120A Battery Management System that continuously monitors each individual cell. The BMS provides multi-layer protection against:
Over-voltage during charging
Low-voltage during deep discharge
Overload conditions
Short circuits (with rapid cut-off response)
Over-temperature fluctuations
This intelligent system actively balances cells to maintain optimal performance and extends overall battery lifespan.
Smart Connectivity – Bluetooth & WiFi APP Monitoring
The built-in Bluetooth and WiFi module enables real-time monitoring via a dedicated mobile application. Users can easily check:
State of Charge (SOC)
Voltage and current readings
Temperature status
System health alerts
This feature provides complete operational transparency and peace of mind.
High-Power Performance – 120A Continuous Output
With the capacity for a continual charge-discharge current of 120A, this battery is well-suited for high-load applications such as emergency power systems and medical apparatus, as well as heavy UPS applications. For applications needing a greater battery capacity, multiple batteries may be connected in parallel (contact the manufacturer for information regarding scalability).
Wide Operating Range – Built for Extreme Conditions
This battery is designed to work under extreme conditions and can perform in a temperature range of -20 °C to 60 °C and at altitude of up to 4,000 meters. Regardless of whether it is organized in basement, attic, or in a remote area, the performance will remain the same.
8,000-Cycle Longevity – Exceptional Investment Value
This battery can be rated for 8,000 cycles, giving many years of operations during normal operating conditions. In comparison with lead-acid batteries, which can offer 300-500 cycles, the total cost of ownership is minimized.
Versatile Communication – Seamless Inverter Integration
Having RS232, RS485, and CAN communication interfaces, the battery can be connected to such inverter manufacturers as Deye, Victron, Growatt, Solis, and Luxpower.
Recommended System Configuration
For optimal performance, we recommend pairing this battery with solar panels exceeding 1,000W total capacity. With an average daily sunshine duration of >6 hours, the system can achieve full daily charging cycles.
Application Areas
The 51.2V100AH Tower Type LiFePO₄ Battery Pack is a versatile energy storage solution suitable for a wide range of applications:
| Application | Description |
|---|---|
| Solar/Wind Energy Storage | Store excess renewable energy for nighttime or low-generation periods |
| Home Energy Storage Systems | Achieve energy independence and reduce electricity bills |
| UPS Backup Power | Provide uninterrupted power for critical equipment |
| Communication Equipment | Reliable backup for telecom base stations and data centers |
| Medical Equipment | Ensure life-saving devices remain operational during outages |
| Fire & Security Systems | Maintain continuous power for alarm and surveillance systems |
| Off-Grid Cabins & Holiday Homes | Enable independent power in remote locations |
| Electric Vehicle Charging Support | Optimize home EV charging costs with smart load management |
The tower-type form factor makes this battery particularly suitable for space-constrained indoor installations where floor space is at a premium.
Company Strength & Quality Assurance
Manufacturing Excellence
Our production capabilities feature modern plants that apply stringent supervision rules at each phase from cell selection to module assembly and system testing. Before being shipped from our factory, every battery unit passes through a series of thorough checks.
Certifications
Our products are certified to international standards:
UN38.3 – Safe transport of lithium batteries
CE – European conformity
UL1642 – Cell-level safety certification
IEC62133 – International safety standard for portable sealed secondary cells
Technical Support
Our engineering team provides comprehensive technical support including:
System design consultation
Installation guidance
Troubleshooting and after-sales service
Firmware updates and BMS configuration
